Mixer

Multi-channel audio mixer with per-channel level, mute, solo, and optional stereo pan. Channel count is configurable (2–16).

Category: Audio

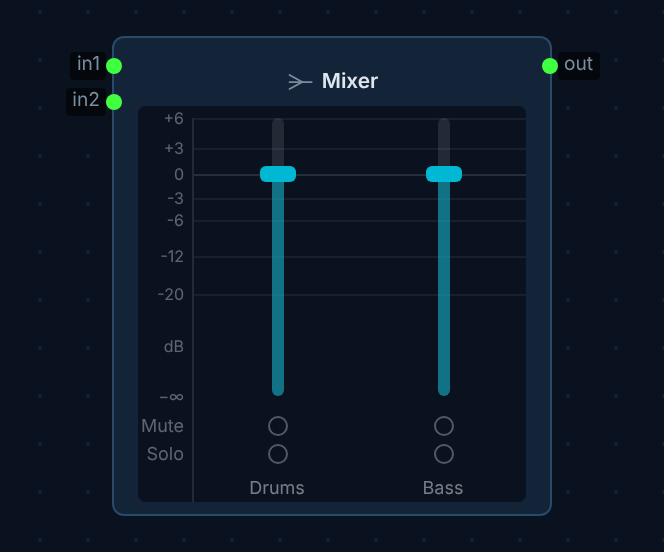

Dynamic shape. Ports and per-channel parameters scale with the channel-count parameter; the default 2-channel shape is shown below.

Inputs

Name	Type	Description
in1	audio	Channel 1 audio input.
in2	audio	Channel 2 audio input.

Outputs

Name	Type	Description
out	audio	Summed mono output.

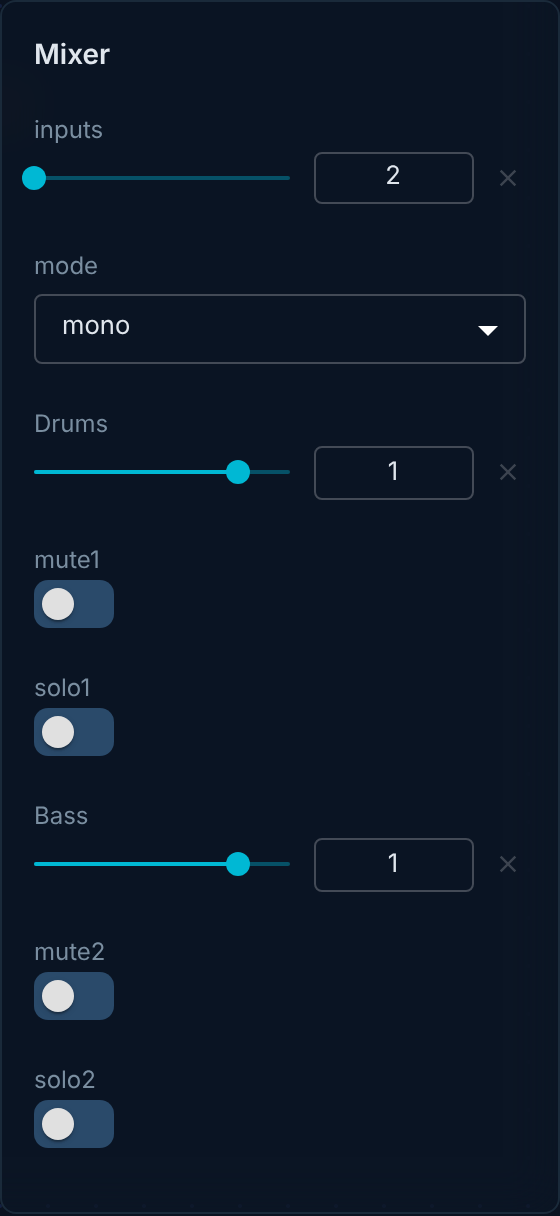

Parameters

Name	Type	Default	Range	Unit	Description
inputs	number	2	2–16	—	Number of input channels. Changing this rebuilds the patch.
mode	enum	mono	mono, stereo	—	Mono sums to a single output; stereo adds per-channel pan and exposes left/right outputs.
level1	number	1	0–2 (cubic)	—	Channel 1 level (cubic taper).
mute1	boolean	false	true, false	—	Mute channel 1.
solo1	boolean	false	true, false	—	Solo channel 1. Solo on any channel mutes all non-solo channels.
label1	string	—	—	—	Display label for channel 1.
level2	number	1	0–2 (cubic)	—	Channel 2 level (cubic taper).
mute2	boolean	false	true, false	—	Mute channel 2.
solo2	boolean	false	true, false	—	Solo channel 2. Solo on any channel mutes all non-solo channels.
label2	string	—	—	—	Display label for channel 2.
